Dura-Base Composite Mats

Heavy Composite Mat

Dura-Base Composite Mats composite bog mat

Overview

What are DuraBase Composite Mats?

DuraBase bog mats, also known as DuraBase composite mats, are heavy-duty ground protection and temporary roadway panels used in construction, oil & gas, utilities, renewable energy, and remote access work sites. They are designed to create stable working surfaces over soft, muddy, uneven, or environmentally sensitive terrain. Available in both Standard Duty (SD) and Heavy Duty (HD) variants, these mats provide a versatile solution for any project requirement.

JWA is Asia Pacific’s exclusive distributor for this versatile and reliable matting system. We have brought over 25,000 bog mats into the region, capable of covering an area of more than 200,000 square metres. With a main depot in Brisbane and offices in Sydney, Melbourne and Perth, JWA delivers nationwide to the country’s major projects across all sectors.

Benefits of DuraBase Bog Mats

  • Reusable platforms and roads in place of traditional methods of trucking aggregates or building concrete pads

  • A single semi-trailer can hold up to 420sqm worth of mat coverage. Composite matting can reduce or replace the need for single-use materials, reducing overall landfill waste.

  • Reduce emissions from overall truck movements required to deliver, refill, and remove the equivalent amount of aggregates and fill material.

  • Dura-Base mats are made of non-porous HDPE, which minimises the risk of cross-contamination while working in sensitive sites.

  • It installs rapidly, forming a protective load-spreading layer to minimise topsoil disturbance during operations.

  • Helps to preserve any underlying plant root substructure for an optimal chance of regrowth. It also prevents equipment from rutting the ground and potentially exposing acid sulphate soils to the air.

  • By minimising ground disturbance during construction, Dura-Base reduces the remediation works required after the project's completion.

  • Laying down Dura-Base mats does not generate dust compared to installing and topping off crushed rock pads. They also act as a layer of dust suppression.

  • Dura-Base is reusable over multiple sites and projects. They are made of HDPE, which is 100% recyclable after the expected lifecycle of over 15 years under standard use conditions.

Key Features

Class Heavy
Interlocking Built-in locking system
Handling Forked or Crane Lift

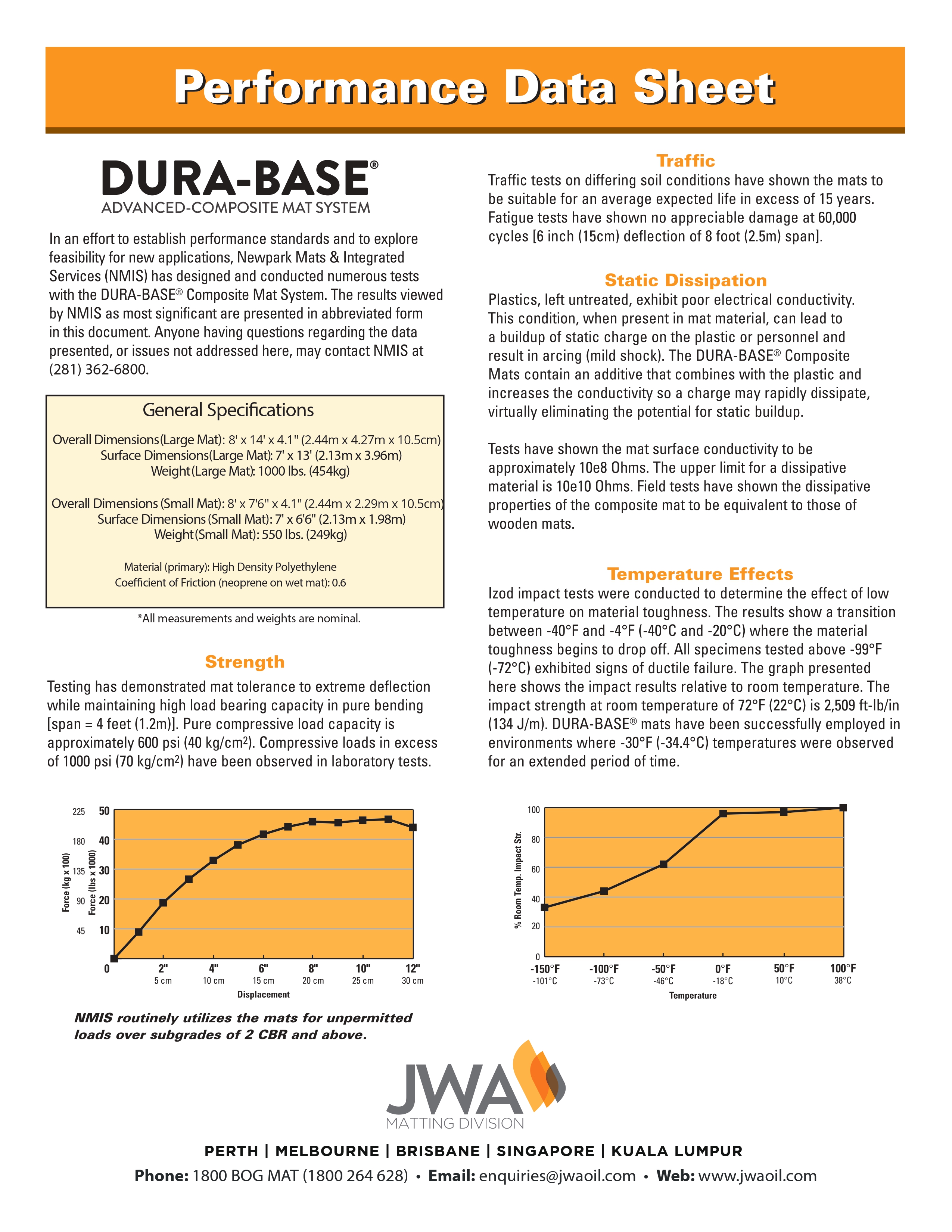

Technical Specifications

Dimensions 4.27m (L) x 2.44m (W) 105mm (H) Usable Surface: 3.96m (L) x 2.13m (W)
Weight 454 kg
Load Capacity Over 100 tonnes. Pure compressive load capacity is approximately 600 psi (40 kg/cm2).

Recommended Applications

Need a quote?

Get pricing and availability for Dura-Base Composite Mats today.

Get a Quote

Gallery

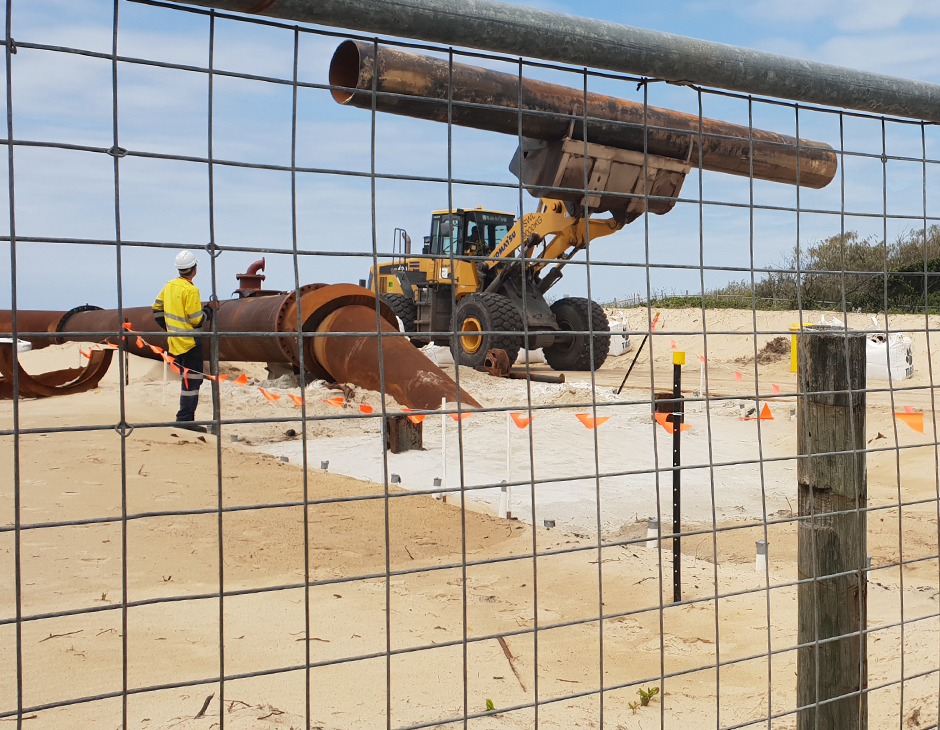

Dura-Base Composite Mats gallery image 1

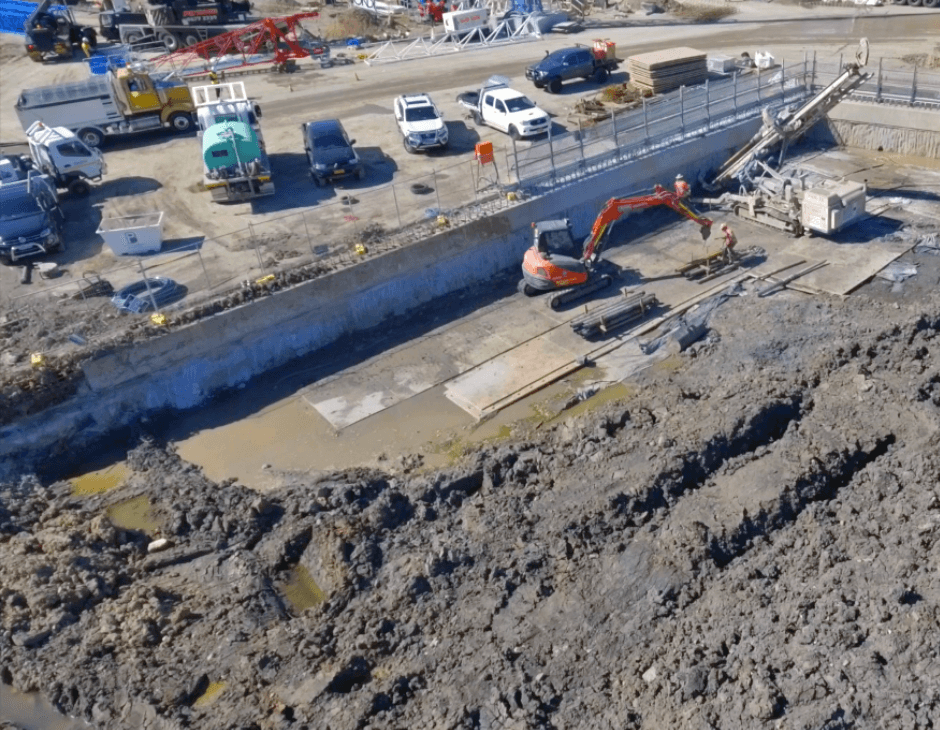

Dura-Base Composite Mats gallery image 2

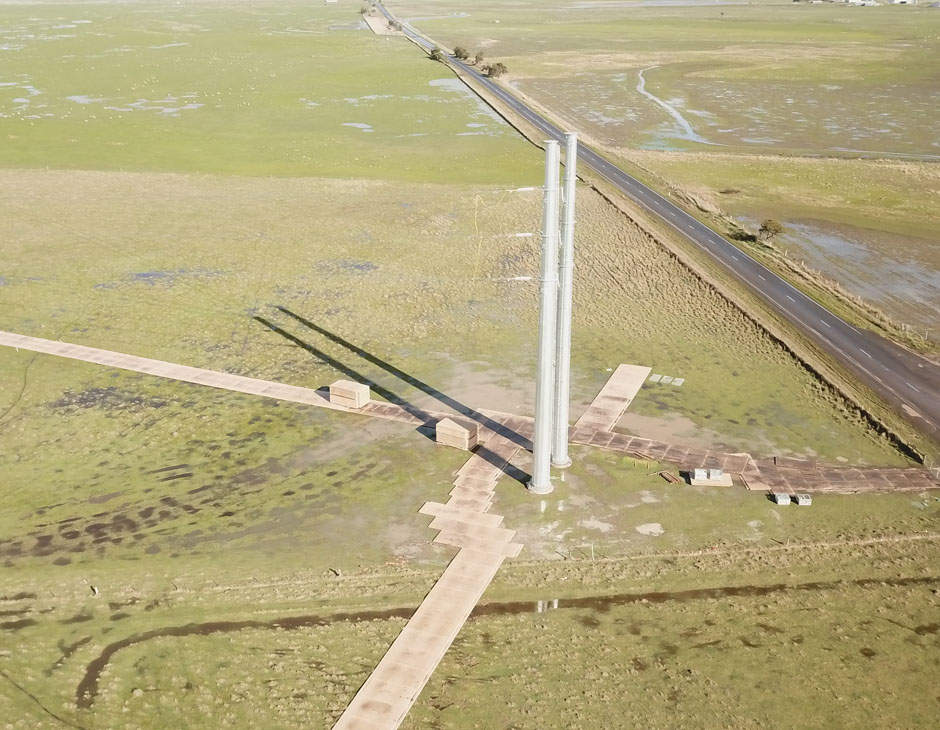

Dura-Base Composite Mats gallery image 3

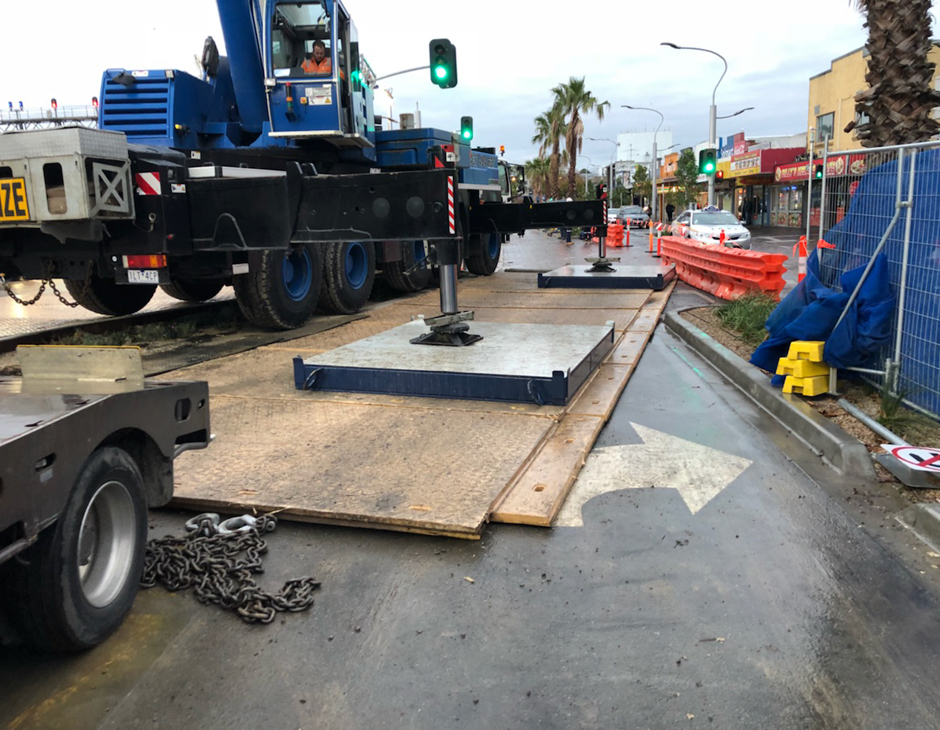

Dura-Base Composite Mats gallery image 4

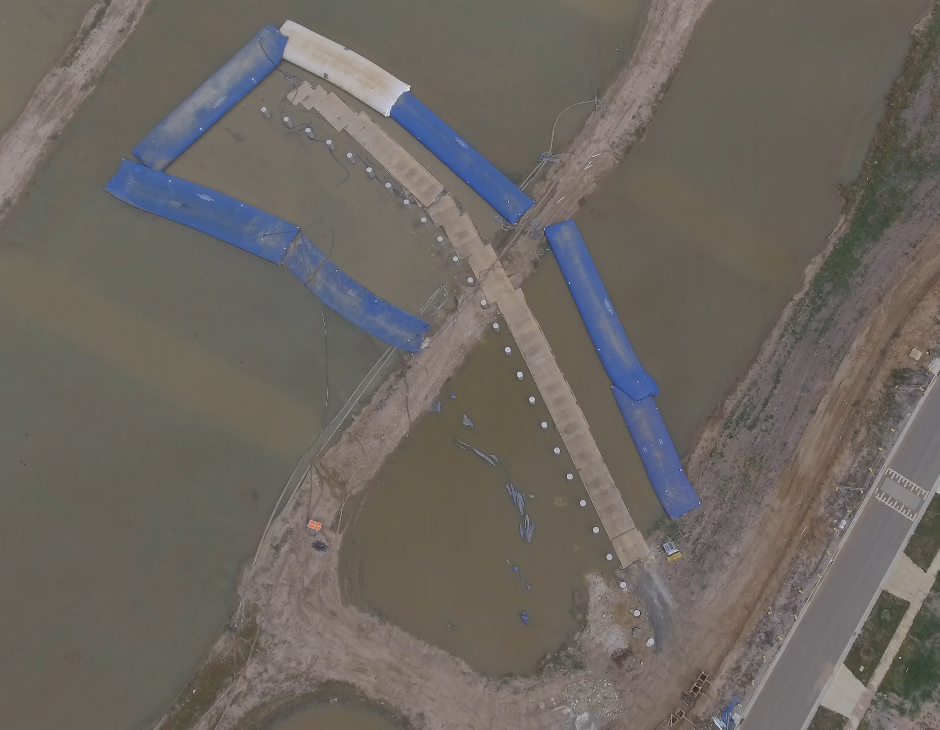

Dura-Base Composite Mats gallery image 5

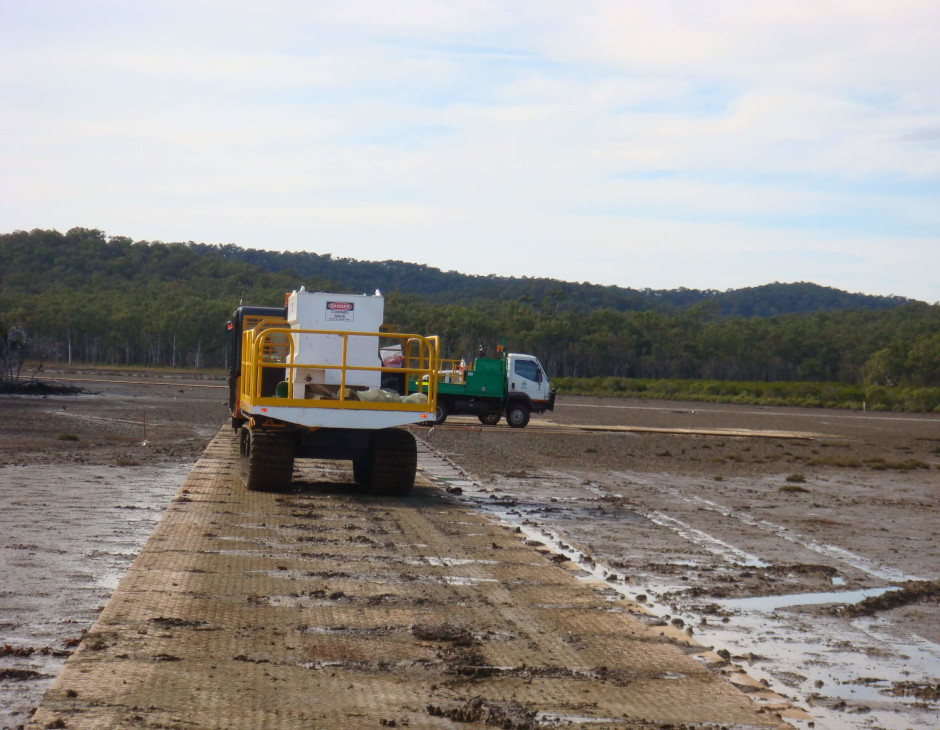

Dura-Base Composite Mats gallery image 6

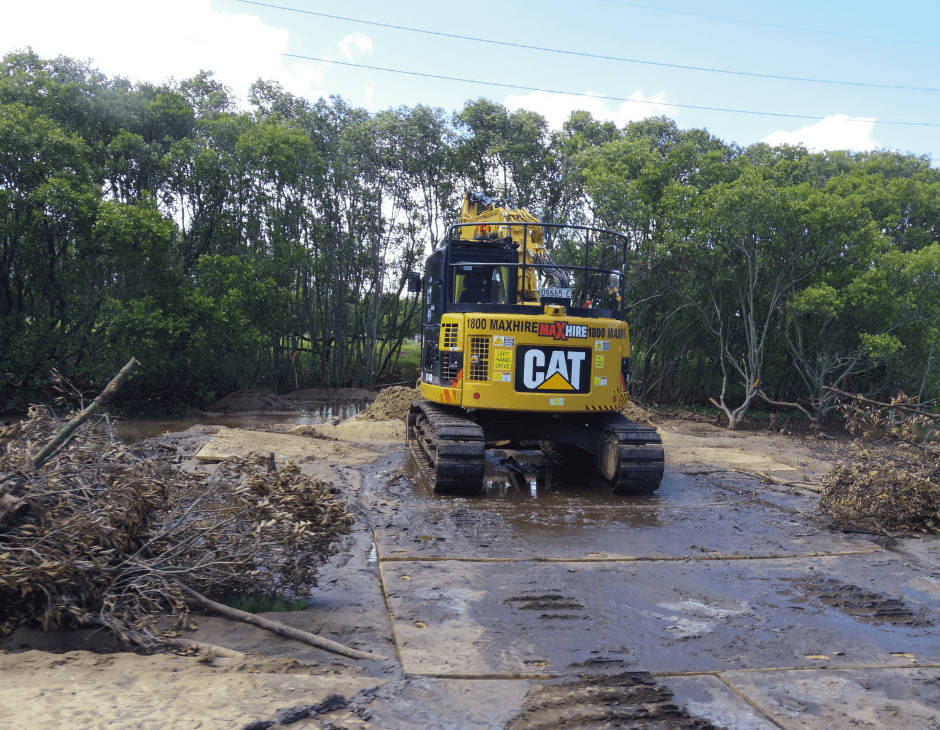

Dura-Base Composite Mats gallery image 7

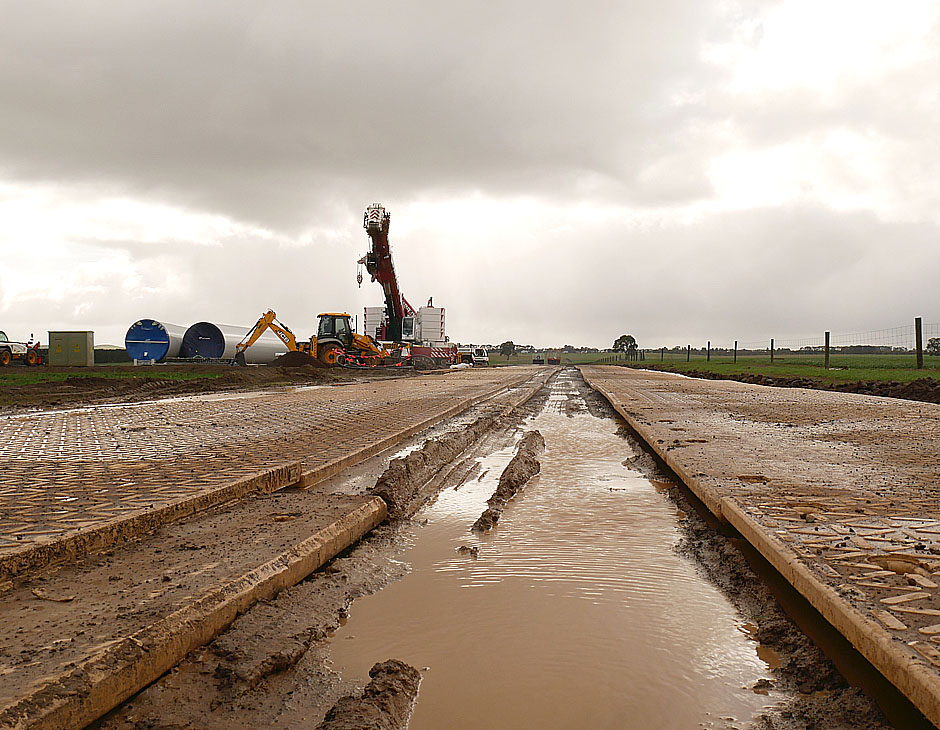

Dura-Base Composite Mats gallery image 8
Dura-Base Composite Mats gallery image 9
Dura-Base Composite Mats gallery image 10
Trusted by Industry Leaders

Not sure which mat you need?

Our team can help you select the right bog mat for your specific ground conditions and equipment.
