Bog Mats
The definitive range of composite access mats.
What are
Bog Mats?
Composite matting is known by many names. In wetlands, operators call them swamp mats. Rig operators call them rig mats. Most commonly, they are known as bog mats.
From 10mm lightweight mats to get trucks out of trouble, to 105mm engineered platforms for the most challenging applications, we have the complete range.
Selection Guide
- Light Duty: Man-portable, quick access (Protech, Rhino)
- Heavy Duty: Cranes, excavators, piling rigs (Dura-Base)
- Interlocking: Continuous surface for heavy load spreading
- Trackout Control: FODS mud and debris management
Need expert advice on selection?
Call 1800 264 628Technical Data
Product Specifications
| Specification | ProTech Bog Mats SD | ProTech Bog Mats HD | ProZone Interlocking Mats | Dura-Base Heavy Duty Composite Mats | FODS Rumble Mats |
|---|---|---|---|---|---|
| Class | Light | Light to Medium | Medium | Heavy | Track Out Control |
| Dimensions | 1000mm x 2000mm x 13mm (Tread depth 6.5mm both sides. Overall thickness 26mm) | 1220mm x 2440mm x 14.7mm (Tread depth 6.5mm vehicle side, 2mm pedestrian side. Overall thickness 21mm) | 1190mm x 1190mm x (Usable area 1m x 1m) | 4270mm x 2440mm x 105mm | 3810mm x 2130mm x (73mm pyramid height) |
| Weight | 28 kg | 43.5 kg | 23 kg | 454 kg | 195 kg |
| Load Capacity | 50 tonnes per sqm | 80 tonnes per sqm | 357 tonnes per sqm | Over 100 tonnes | Up to 80 tonnes |
| Interlocking | Optional Connectors | Optional Connectors | Built-in locking system | Overlapping sections | Optional Connectors |
| Handling | Man Portable (Two Man) | Man Portable (Two Man) | Man Portable | Forked or Crane Lift | Forked or Crane Lift |
ProTech Bog Mats SD
Heavy-duty movable roadways and stabilised platforms with low environmental impact. The ProTech SD is our standard duty option, ideal for lighter applications where easy handling is essential.
ProTech Bog Mats HD
When you need something more robust but still installable by hand. ProZone mats are interlocking panels for temporary walkways with added thickness for enhanced load capacity.
ProZone Interlocking Mats
2.4m x 1.2m man-portable bogmats. ProZone mats feature a built-in interlocking system that screws in to help minimise mat movement during use and provides effective load spreading across the entire surface.

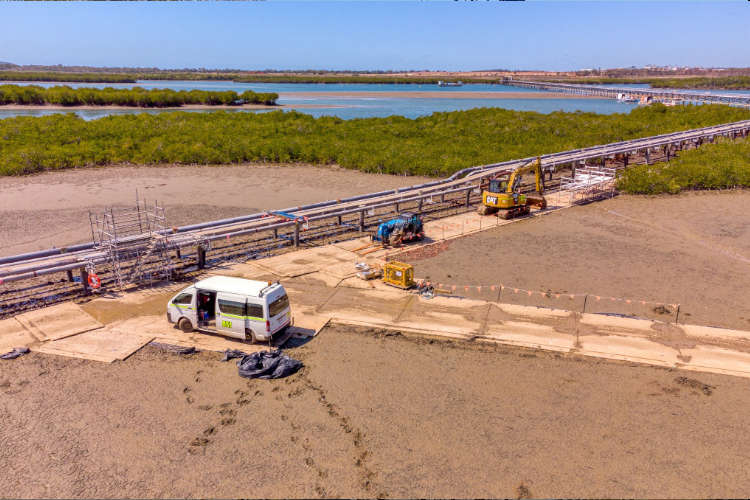

Dura-Base Heavy Duty Composite Mats
Constructed from UV stabilised High-Density Polyethylene (HDPE) and stainless steel, DuraBase composite mats are weatherproof with a history of successful deployments in tidal flats, creek beds, beaches, swamps, environmental wetlands and other challenging Australian terrain.

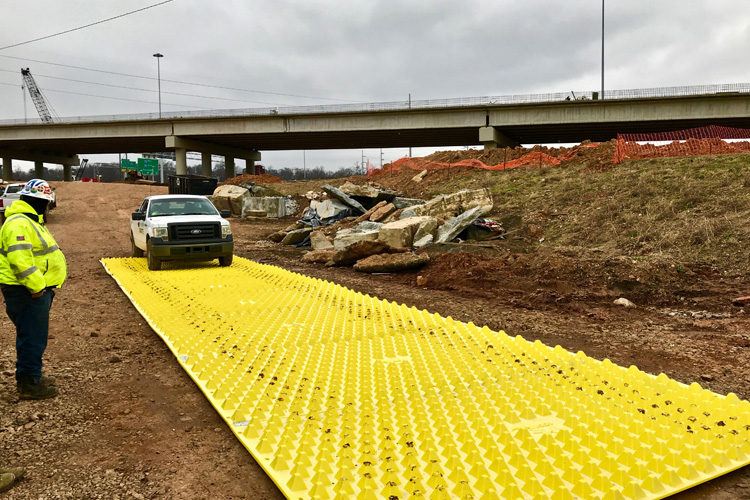

FODS Rumble Mats
FODS (Fiber Optic Distribution Systems) Trackout Control Mats - a trackout control matting system for effective management of mud and debris on construction vehicles leaving site. An Australian first for sustainable site management.

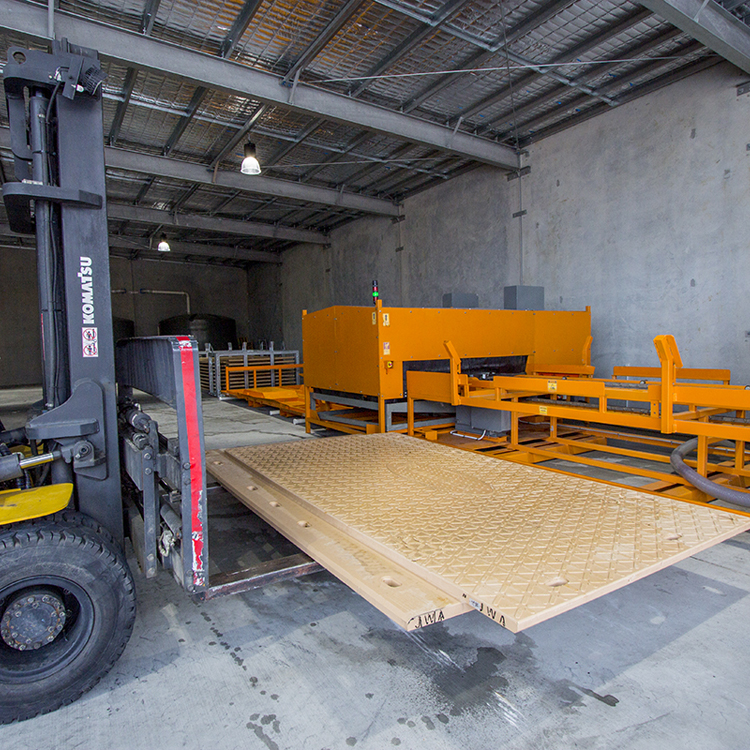

JWA Composite Mat Management Services
Specialised mat washing and repairing service. Let us manage your matting inventory so you can focus on your core business.
Total Mat Management
We don't just supply mats. We offer comprehensive inventory management including professional washing and storage solutions.
